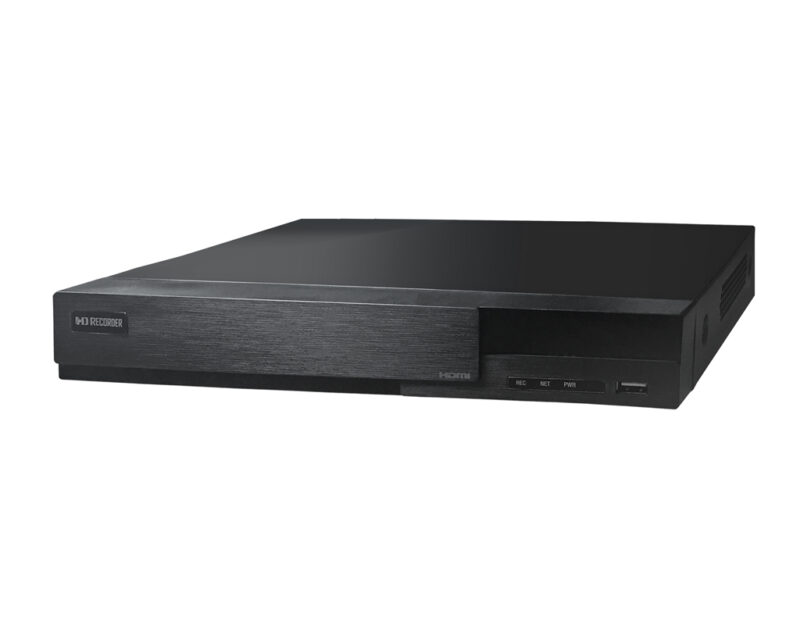

HS-HA8311
- AHD/TVI/CVI/CVBS/IP record.
- H.264+ high profile compression algorithm, low bit rate, high picture quality.
- Dual stream – individual network video streaming and DVR record streaming.
- Phone remote view (iPhone / iPad / Android).
- Support P2P. QR code connection.
- Device ID setup for control keyboard.
- AHD/TVI 5MP/4MP camera input.
- Smart channel settings: Live / playback screen digital zoom, playback camera title and date / time position movable.
- Operation log list / Network online users list check.Intensive security function by chosen AUTHORITY.Convenient backup by AVI file.
- DVR control: mouse,control keyboard, network.
- IVS: Missing object / Tampering detection / Tripwire / Line crossing. (Used with a specific camera)
Description
| Model | HS-HA8311 |
| Input
AHD/TVI/CVI |
8CH |
| Input
IP |
1CH |
| IPC Connection Channel | 9CH |
| Output
VGA |
1920×1080 / 1280×1024 |
| Output
HDMI |
1920×1080 / 1280×1024 |
| Output
CVBS |
MAIN or SPOT |
| Compression Method | H.264 High Profile (H.264+) |
| Display Channel | 1 / 4 / 9 |
| Live Preview
5M |
Maximum 20 FPS/CH |
| Live Preview
4M 1080P (and below) |
Maximum 30 FPS/CH |
| AHD/ TVI5M Lite (1280×1936) |
Maximum 10 FPS/CH |
| AHD/ TVI/CVI 4M Lite (1280×1440) |
Maximum 15 FPS/CH |
| AHD/ TVI/CVI 1080P |
Maximum 15 FPS/CH |
| AHD/ TVI/CVI 720P/ |
Maximum 30 FPS/CH |
| AHD/ TVI/CVI 960H |
Maximum 30 FPS/CH |
| IP
3MP |
Maximum 15 FPS/CH |
| IP
1080P (and below) |
Maximum 25 FPS/CH |
| IP
Access Load (Max.) |
10Mbps (50Mbps) |
| Simultaneously Local Playback | 8CH |
| IPC Connection | 8MP / 5MP / 4MP / 3MP / 1080P / 720P (Automatically adjustment by NVR) |
| Record Quality | Highest / Higher / Medium / Lower / Lowest |
| Multi-task | Live / Record / Play / Network / Backup |
| Motion Detect | 22×18 grids camera for all channel |
| Backup | USB 2.0×2 / Network remote backup |
| Storage | SATA x1 (10TB) |
| Audio | Input : 4 ; Output : 1 |
| Alarm | Input : 4 ; Output : 1 |
| HDD Record Mode | Full stop / overwrite |
| PTZ Control | PELCO-P, PELCO-D, CoC(UTP) |
| Ethernet | 10/100 M Base-T |
| Network-Function | Support licensed CMS / APP/ IE |
| Network Connection | TCP/IP, PPPoE, DHCP, DDNS(Auto DDNS) |
| Client Application | Display / Playback / Backup / DVR control / PTZ Control |
| Power Source | DC12V |
| Operating Temperature | 5℃~40℃ (41℉~104℉) |
| Operating Humidity | Less than 90% |
| Dimension | 300(W) x 52.1(H) x 248.4(D)mm |
